CubeKit is a comprehensive collection of high-level React components designed specifically for Cube.dev applications. It provides ready-to-use components that help you build sophisticated analytics interfaces in minutes, not months.
npm install @cubekit/react# oryarn add @cubekit/reactMake sure you have the required peer dependencies installed:
npm install react@>=18.0.0 react-dom@>=18.0.0Wrap your application with the CubeKitProvider to provide Cube.js context to all components:
import React from 'react';import { CubeKitProvider } from '@cubekit/react';const App = () => { return ( <CubeKitProvider config={{ cubeApiUrl: 'http://localhost:4000/cubejs-api/v1', cubeApiToken: 'your-api-token', // Optional pollInterval: 60000, // Optional: polling interval in ms }} > <YourAppComponents /> </CubeKitProvider> );};export default App;The CubeKitConfig interface supports the following options:

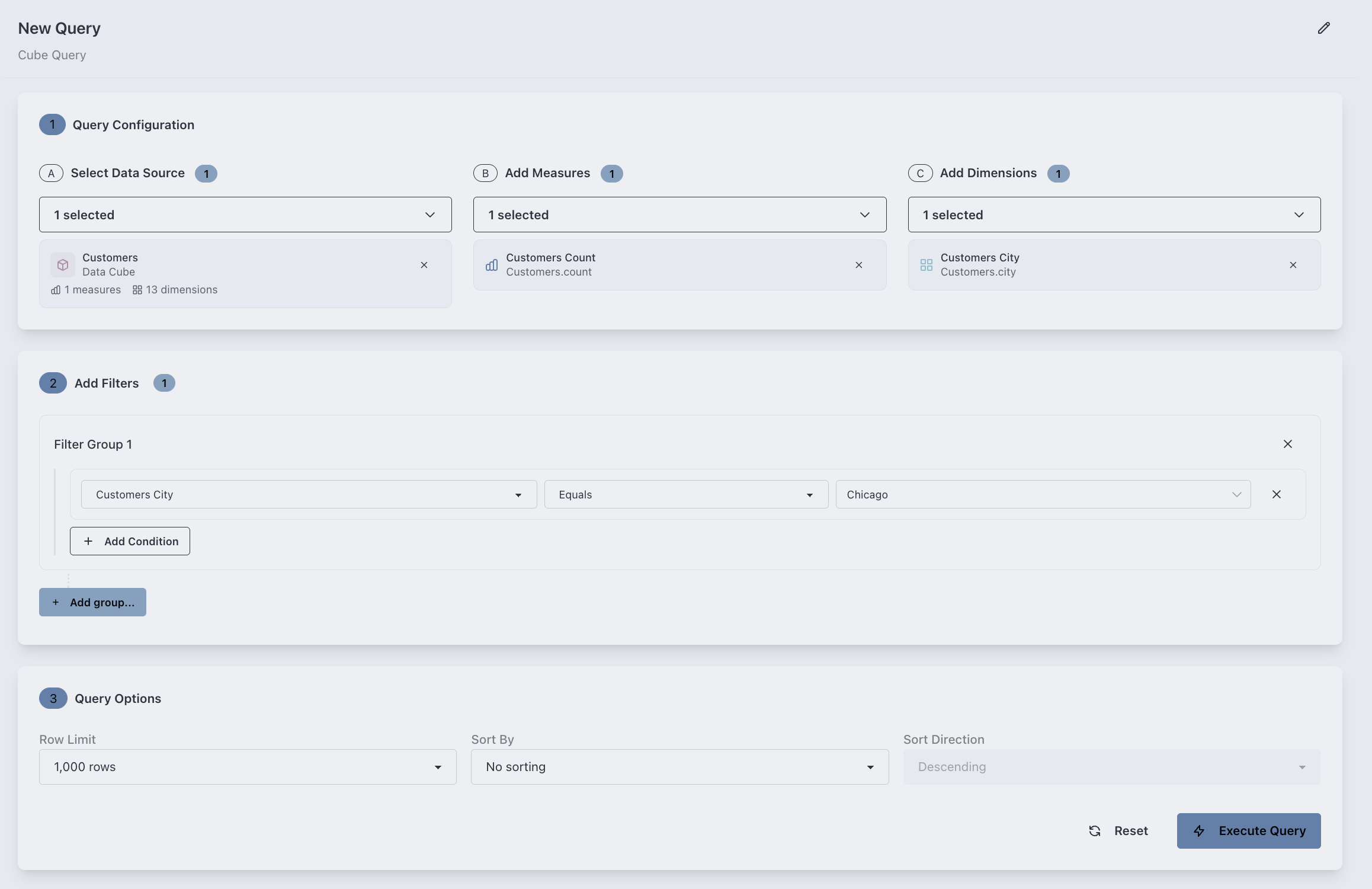

interface CubeKitConfig { cubeApiUrl: string; // Your Cube.js API URL cubeApiToken?: string; // Optional API token for authentication pollInterval?: number; // Optional polling interval in milliseconds storageAdapter?: StorageAdapter; // Optional custom storage adapter}A powerful no-code interface that allows business users to build complex Cube.dev queries through an intuitive drag-and-drop interface.

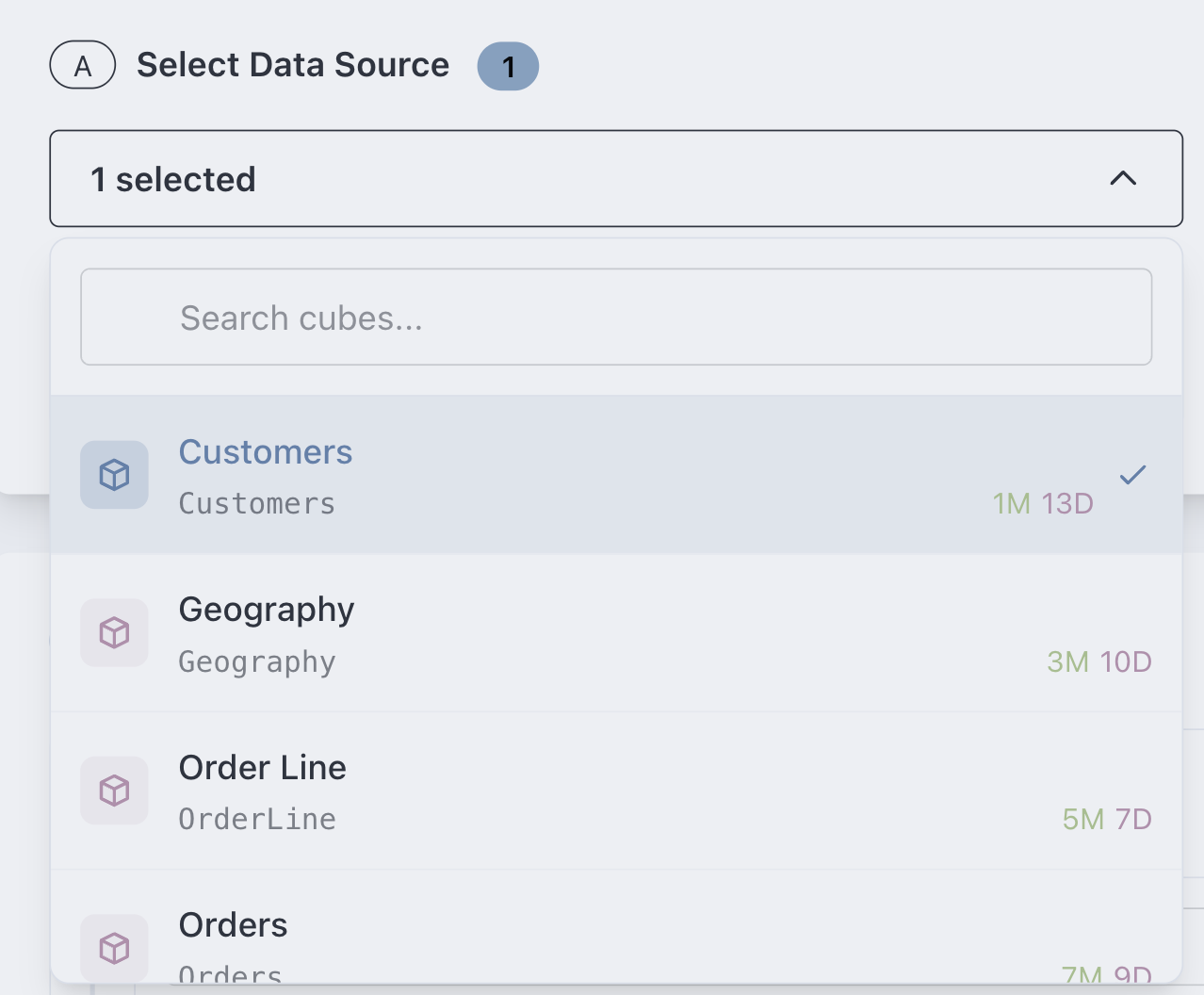

import { QueryBuilder } from '@cubekit/react';function MyApp() { return ( <div className="p-4"> <QueryBuilder className="w-full h-screen" /> </div> );}A dropdown component for selecting Cube.js cubes.
import { CubeSelect } from '@cubekit/react';import { useCube } from '@cubekit/react';function CubeSelector() { const { meta } = useCube(); const [selectedCube, setSelectedCube] = useState<string | null>(null); const handleCubeSelect = (cubeName: string) => { setSelectedCube(cubeName); console.log('Selected cube:', cubeName); }; return ( <CubeSelect cubes={meta?.cubes || []} selectedCube={selectedCube} onCubeSelect={handleCubeSelect} validateJoins={(cubeName) => true} // Optional validation /> );}| Prop | Type | Description |
|---|---|---|
cubes |
CubeMetaItem[] |
Array of available cubes from meta |
selectedCube |
string | null |
Currently selected cube name (null if none) |
onCubeSelect |
(cubeName: string) => void |
Callback when cube selection changes |
validateJoins? |
(cubeName: string) => boolean |
Optional function to validate cube joins |

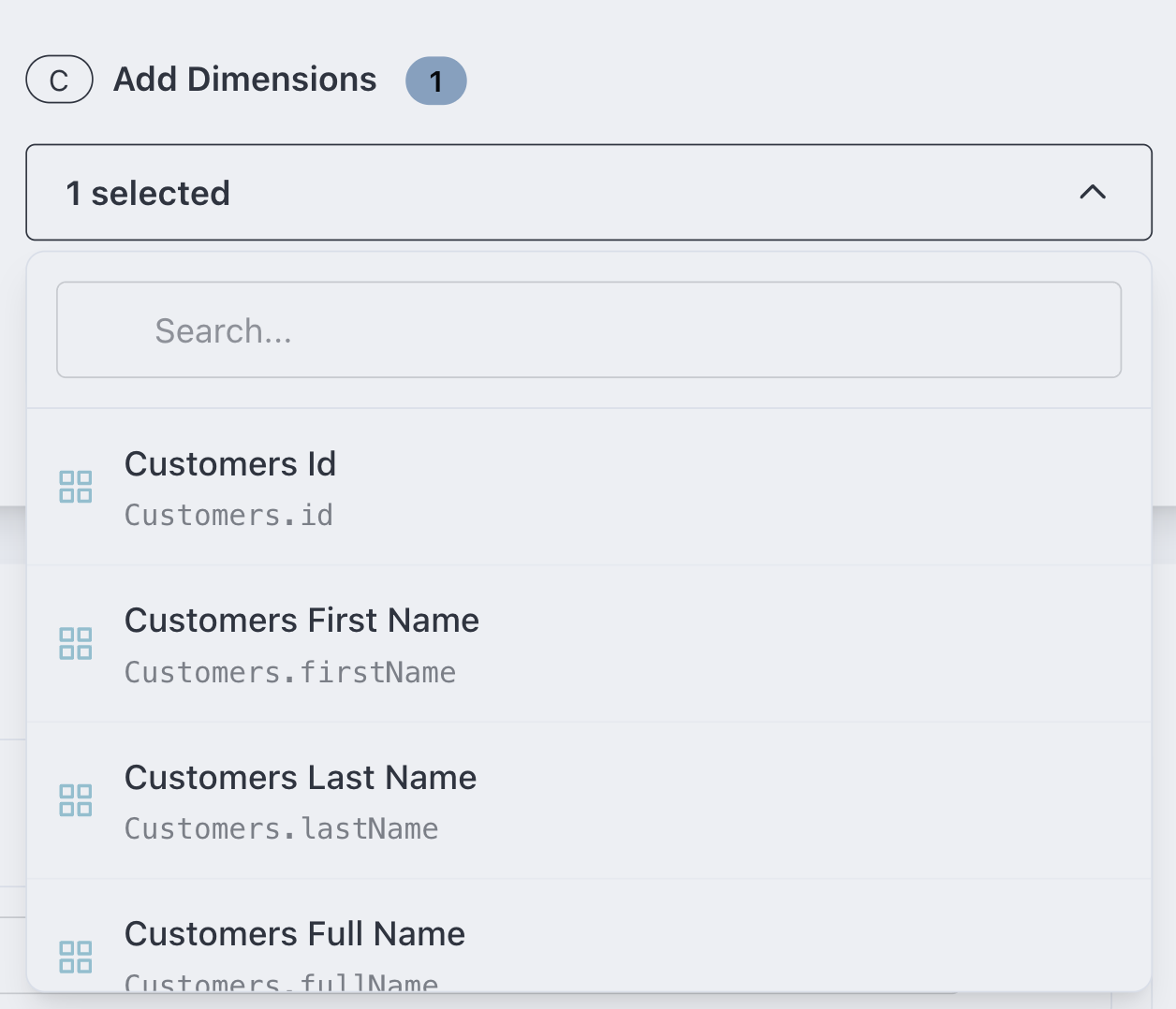

A generic multi-select dropdown component for selecting measures, dimensions, or segments.
import { MultiSelect } from '@cubekit/react';import { MeasureIcon } from '@cubekit/react';function MeasureSelector() { const [selectedMeasures, setSelectedMeasures] = useState<string[]>([]); const measures = [ { name: 'Orders.count', title: 'Orders Count', type: 'count' }, { name: 'Orders.totalAmount', title: 'Total Amount', type: 'sum' } ]; return ( <MultiSelect items={measures} selectedItems={selectedMeasures} onSelectionChange={setSelectedMeasures} getItemName={(item) => item.name} getItemTitle={(item) => item.title} getItemType={(item) => item.type} getItemIcon={(item) => <MeasureIcon className="w-4 h-4" />} placeholder="Select measures..." emptyMessage="No measures available" disabled={false} /> );}| Prop | Type | Description |
|---|---|---|
items |
T[] |
Array of items to select from (generic type) |
selectedItems |
string[] |
Currently selected item names |
onSelectionChange |
(items: string[]) => void |
Callback when selection changes |
getItemName |
(item: T) => string |
Function to get item's unique name/key |
getItemTitle |
(item: T) => string |
Function to get item's display title |
getItemIcon |
(item: T) => React.ReactNode |
Function to get item's icon |
placeholder |
string |
Placeholder text when no items selected |
emptyMessage |
string |
Message when no items available |
disabled? |
boolean |
Whether the component is disabled |

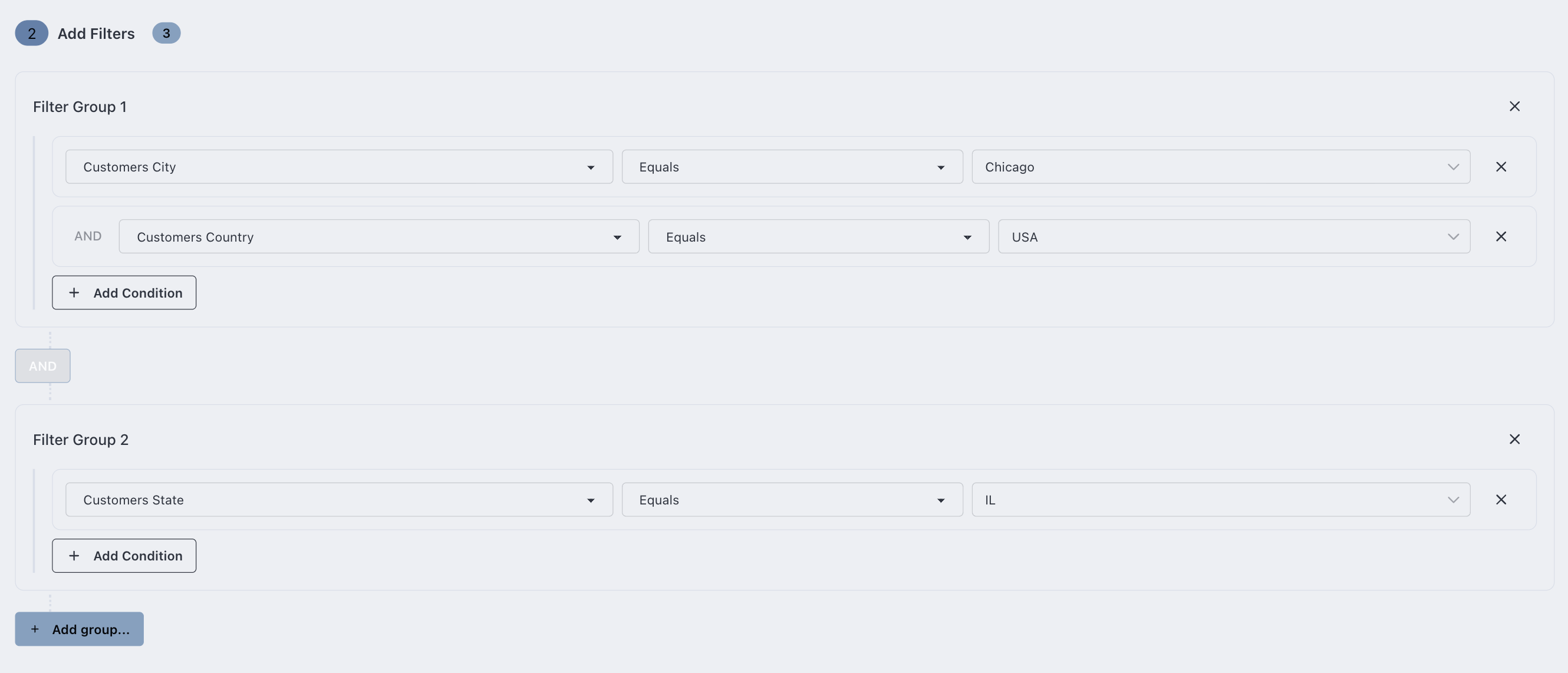

A comprehensive filter builder component for creating complex query filters.
import { FilterBuilder } from '@cubekit/react';function QueryFilters() { const [filterGroups, setFilterGroups] = useState([]); return ( <FilterBuilder availableDimensions={[ { name: 'Orders.status', title: 'Order Status', type: 'string' }, { name: 'Orders.createdAt', title: 'Created Date', type: 'time' } ]} filterGroups={filterGroups} onFiltersChange={setFilterGroups} className="p-4" /> );}Component for configuring query options like limit, sorting, and row limits.

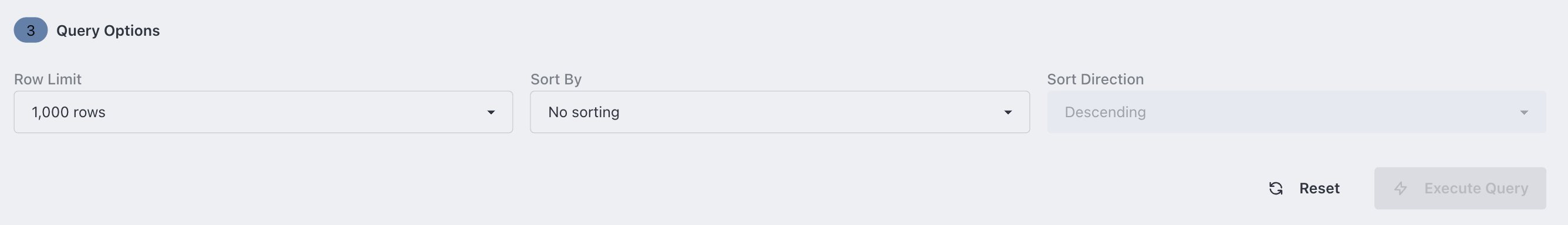

import { QueryOptions } from '@cubekit/react';function QueryConfiguration() { return ( <QueryOptions limit={1000} onLimitChange={(limit) => console.log('Limit:', limit)} sortField="Orders.count" sortDirection="desc" onSortFieldChange={(field) => console.log('Sort field:', field)} onSortDirectionChange={(direction) => console.log('Direction:', direction)} className="mb-4" /> );}Action buttons for query operations (save, execute, export, etc.).

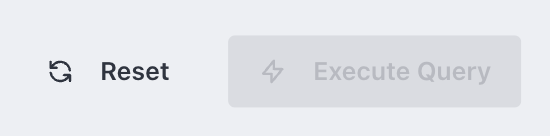

import { QueryActions } from '@cubekit/react';function QueryControls() { return ( <QueryActions onExecute={() => console.log('Execute query')} onSave={() => console.log('Save query')} onExport={() => console.log('Export results')} isExecuting={false} className="flex gap-2" /> );}An AI-powered chat interface for natural language querying.

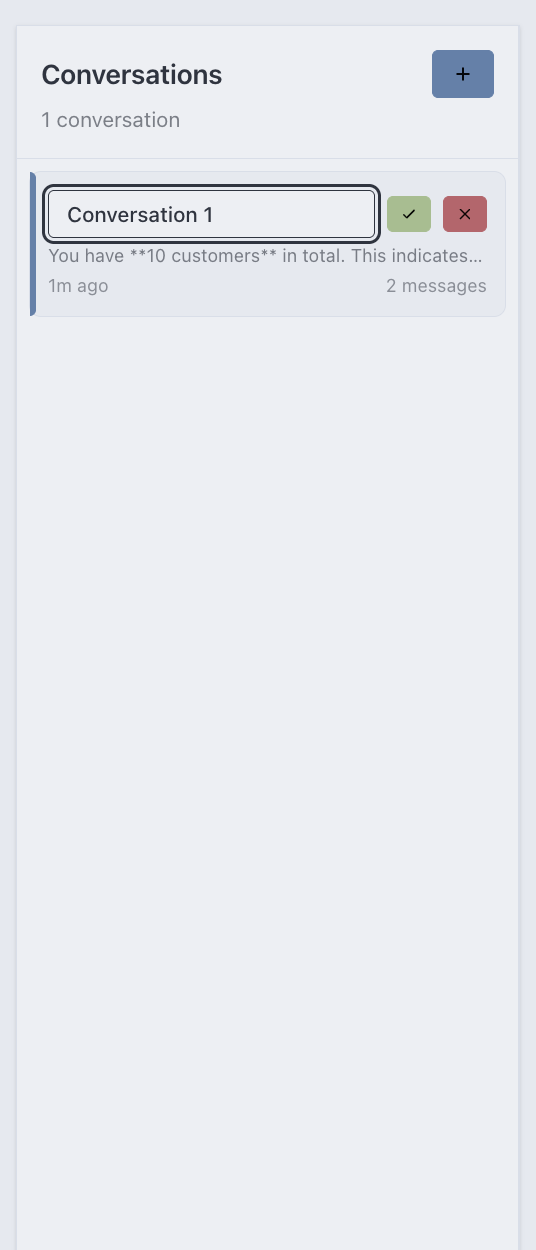

import { ConversationBuilder } from '@cubekit/react';function AIQueryInterface() { return ( <ConversationBuilder className="w-full h-screen" aiApiUrl="https://your-ai-api-endpoint" enableVoiceInput={true} /> );}Individual message component within conversations.

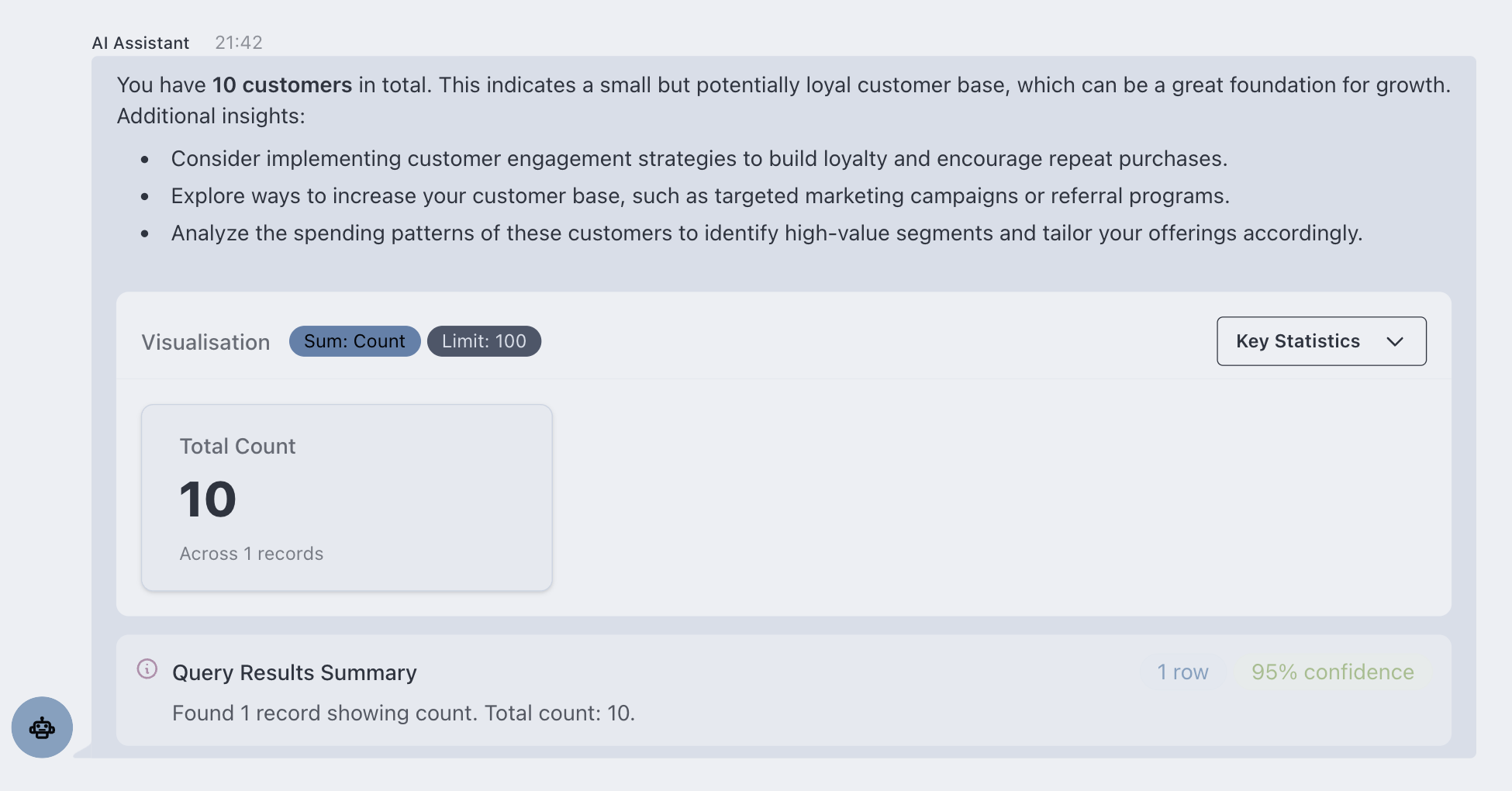

import { Message } from '@cubekit/react';function ChatMessage({ message }) { return ( <Message content={message.content} type={message.type} timestamp={message.timestamp} isUser={message.isUser} className="mb-4" /> );}Component for building and executing raw SQL queries.

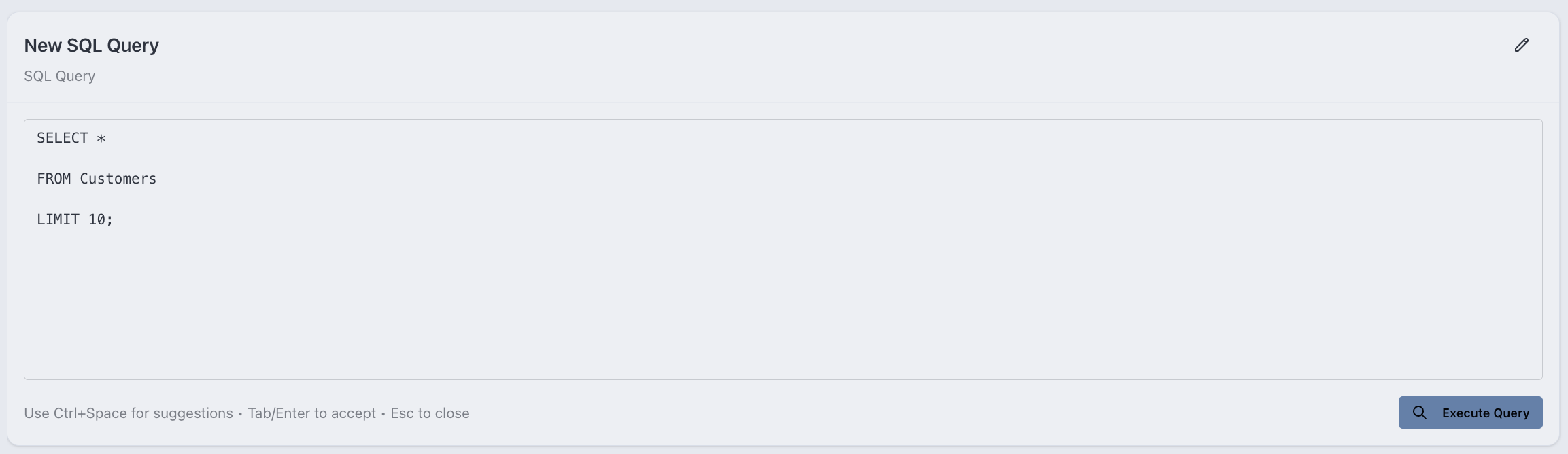

import { SqlQueryBuilder } from '@cubekit/react';function SqlInterface() { return ( <SqlQueryBuilder className="w-full h-screen" defaultQuery="SELECT * FROM Orders LIMIT 100" enableSyntaxHighlighting={true} /> );}SQL code editor component.

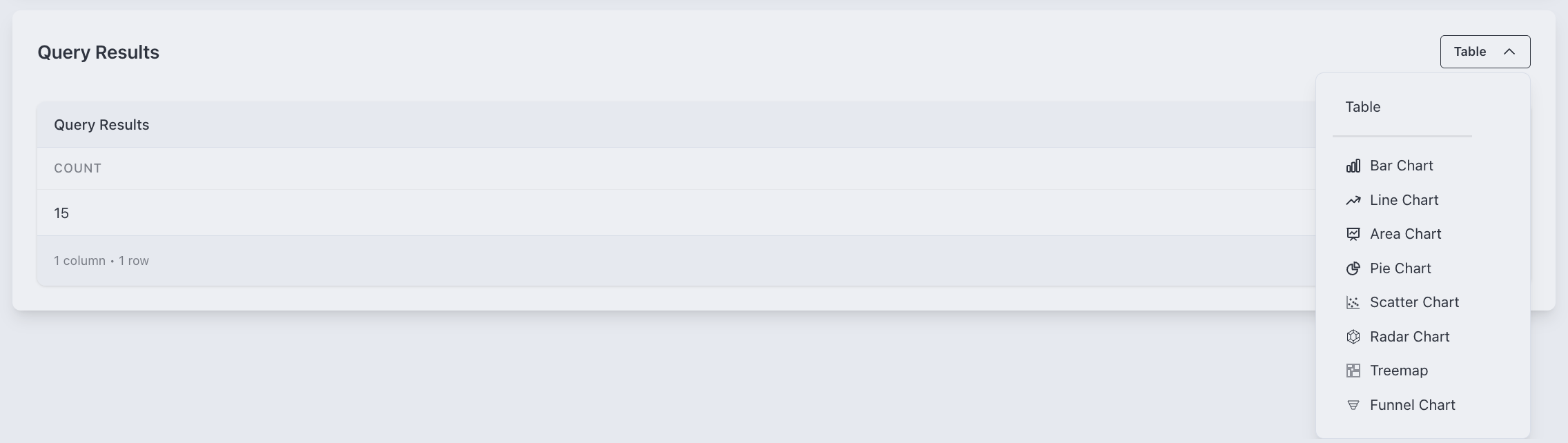

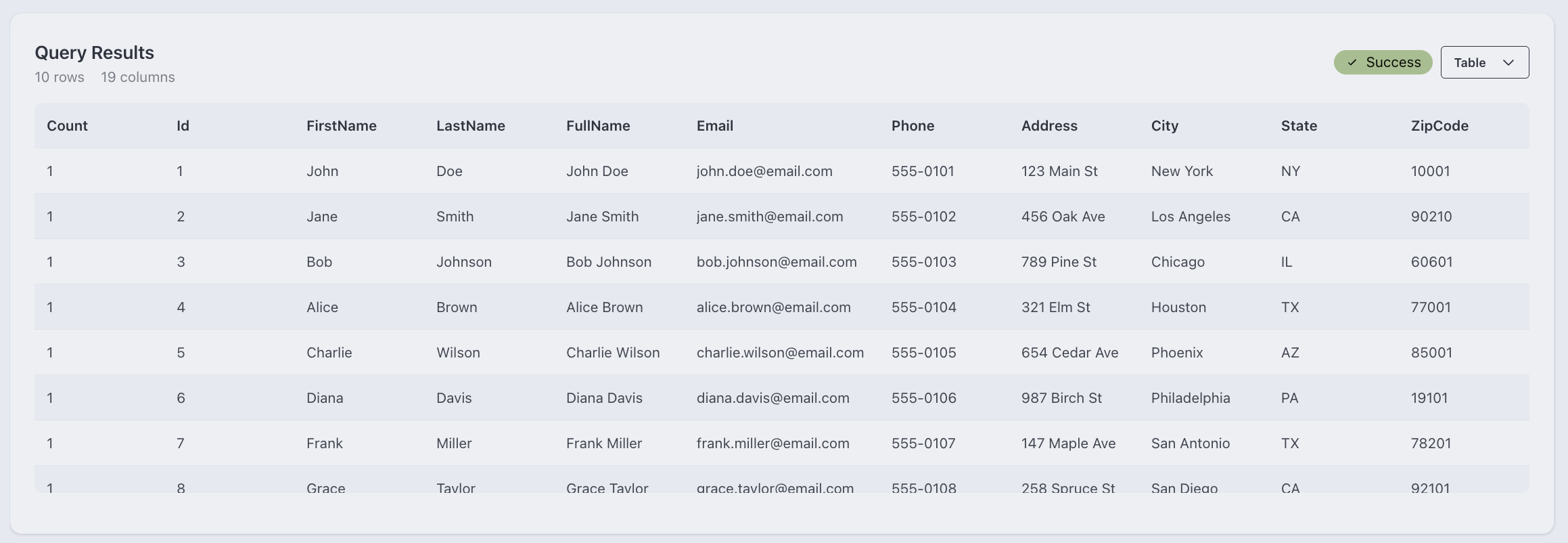

import { SqlEditor } from '@cubekit/react';function QueryEditor() { const [sql, setSql] = useState('SELECT * FROM Orders'); return ( <SqlEditor value={sql} onChange={setSql} placeholder="Enter your SQL query..." className="h-64 border rounded" /> );}Component for displaying SQL query results.

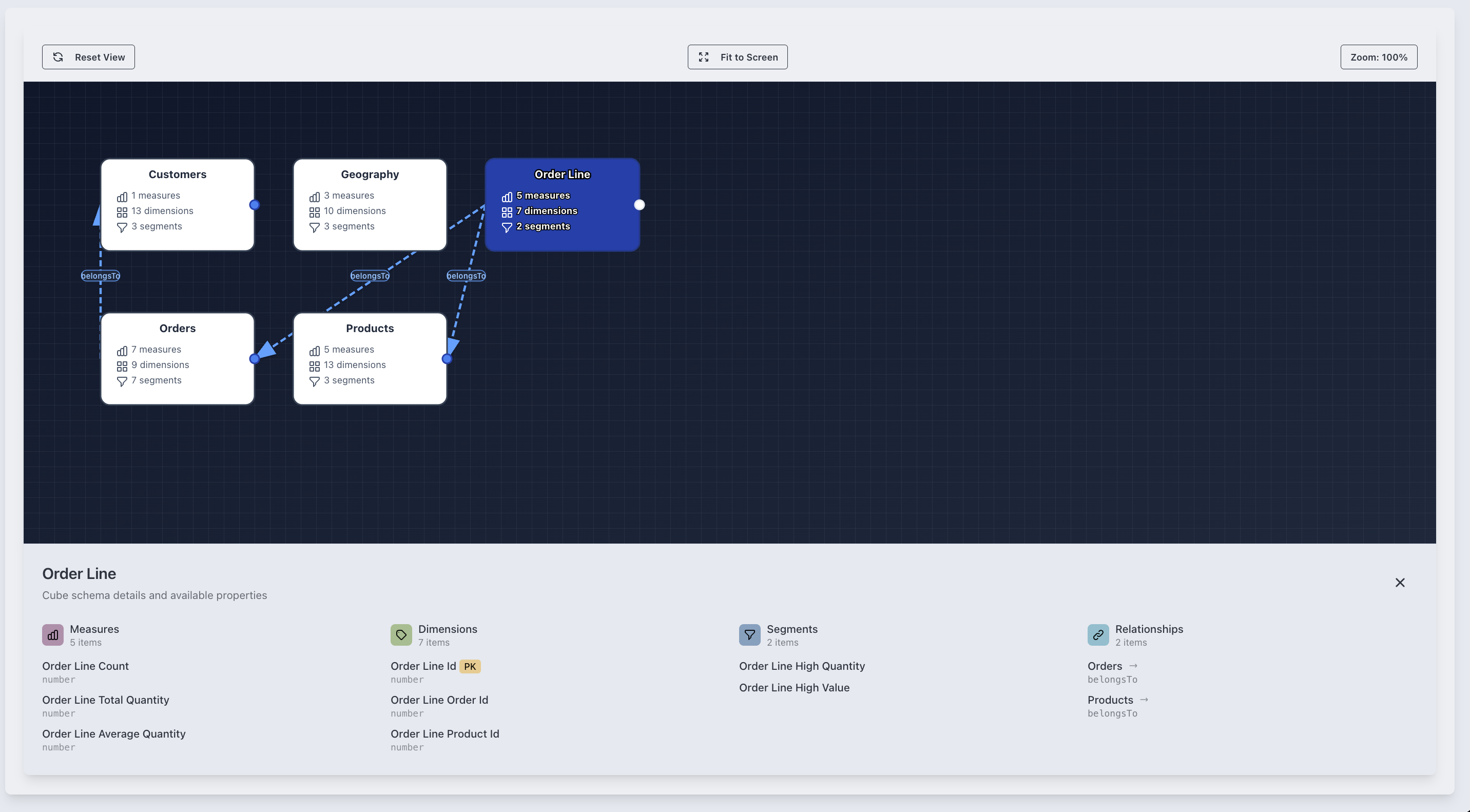

import { SqlQueryResult } from '@cubekit/react';function ResultsDisplay({ results }) { return ( <SqlQueryResult results={results} enableExport={true} pageSize={50} className="mt-4" /> );}Interactive visualization of your Cube.js schema with relationships.
import { SchemaVisualizer } from '@cubekit/react';function SchemaExplorer() { return ( <SchemaVisualizer className="w-full h-screen" onCubeSelect={(cubeName) => console.log('Selected cube:', cubeName)} onMeasureSelect={(measure, cube) => console.log('Selected measure:', measure, 'from', cube)} onDimensionSelect={(dimension, cube) => console.log('Selected dimension:', dimension, 'from', cube)} showRelationships={true} enableZoom={true} /> );}Individual cube node within the schema visualizer.

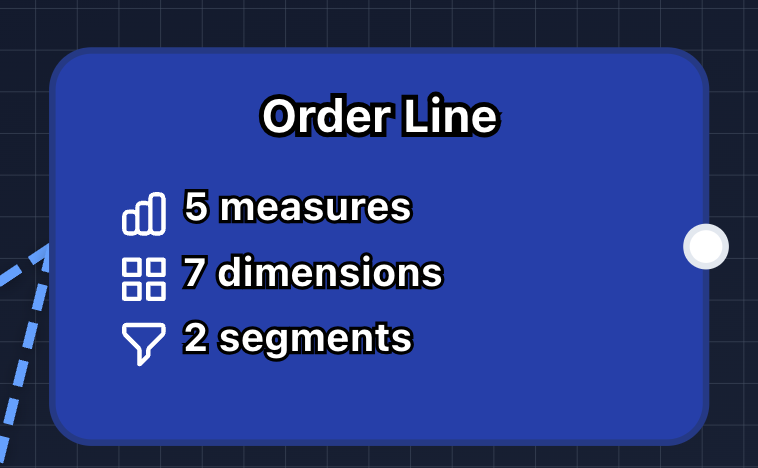

import { CubeNode } from '@cubekit/react';function SchemaNode({ cube }) { return ( <CubeNode cube={cube} position={{ x: 100, y: 100 }} onSelect={(cubeName) => console.log('Selected:', cubeName)} isSelected={false} className="cursor-pointer" /> );}Drag-and-drop dashboard composition tool with a rich widget library and flexible layout management.

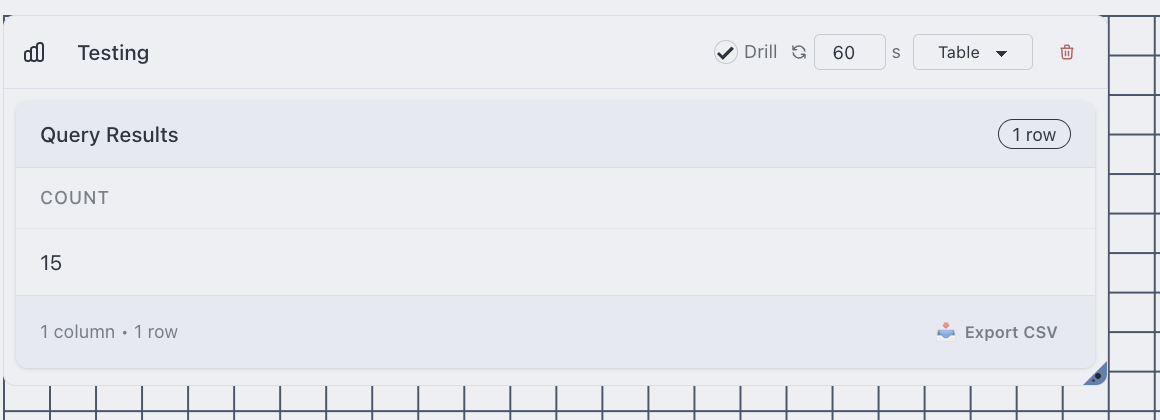

import { DashboardBuilder } from '@cubekit/react';function Dashboard() { return ( <DashboardBuilder className="w-full h-screen" enableEditing={true} gridSize={12} /> );}Individual dashboard widget component.
import { Widget } from '@cubekit/react';function DashboardWidget({ widgetConfig }) { return ( <Widget id={widgetConfig.id} type={widgetConfig.type} query={widgetConfig.query} title={widgetConfig.title} size={{ width: 6, height: 4 }} onEdit={(id) => console.log('Edit widget:', id)} onDelete={(id) => console.log('Delete widget:', id)} className="border rounded-lg" /> );}Hook for accessing Cube.js context and functionality.
import { useCube } from '@cubekit/react';function MyComponent() { const { meta, isLoading, error, executeQuery, executeSqlQuery, refetchMeta } = useCube(); // Use cube data and methods if (isLoading) return <div>Loading...</div>; if (error) return <div>Error: {error}</div>; return ( <div> <h3>Available Cubes: {meta?.cubes?.length}</h3> <button onClick={refetchMeta}>Refresh Schema</button> </div> );}| Return Value | Type | Description |
|---|---|---|
meta |
CubeMeta | null |
Cube schema metadata |
cubes |
any[] | null |
Available cubes |
isLoading |
boolean |
Loading state |
error |
string | null |
Error message |
executeQuery |
(query: CubeQuery) => Promise<QueryResult> |
Execute Cube.js query |
executeSqlQuery |
(sql: string) => Promise<SqlQueryResult> |
Execute SQL query |
refetchMeta |
() => Promise<void> |
Refresh metadata |
cubeApi |
string |
API URL |
Hook for managing query builder state.
import { useQuery } from '@cubekit/react';function QueryManager() { const { state, updateQuery, createQuery, deleteQuery, setCurrentResults } = useQuery(); const handleCreateQuery = () => { const queryId = createQuery('My New Query'); updateQuery(queryId, { query: { measures: ['Orders.count'], dimensions: ['Orders.status'], segments: [], timeDimensions: [], filters: [], limit: 1000, order: {} } }); }; return ( <div> <button onClick={handleCreateQuery}>Create Query</button> <p>Active queries: {state.savedQueries.length}</p> </div> );}Hook for managing conversation state in AI chat interface.
import { useConversation } from '@cubekit/react';function ChatManager() { const { state, sendMessage, createConversation, deleteConversation } = useConversation(); const handleSendMessage = async (content: string) => { await sendMessage(content, 'user'); // AI response would be handled internally }; return ( <div> <button onClick={() => createConversation('New Chat')}> New Conversation </button> <p>Conversations: {state.conversations.length}</p> </div> );}Hook for managing dashboard state and widgets.
import { useDashboard } from '@cubekit/react';function DashboardManager() { const { state, createDashboard, addWidget, updateWidget, deleteWidget } = useDashboard(); const handleAddChart = () => { if (state.activeDashboardId) { addWidget(state.activeDashboardId, { type: 'chart', title: 'New Chart', query: { measures: ['Orders.count'], dimensions: [] }, visualization: { type: 'bar' }, size: { width: 6, height: 4 }, position: { x: 0, y: 0 } }); } }; return ( <div> <button onClick={handleAddChart}>Add Chart Widget</button> <p>Dashboards: {state.dashboards.length}</p> </div> );}Hook for managing SQL query state.
import { useSqlQuery } from '@cubekit/react';function SqlManager() { const { state, executeQuery, saveQuery, updateQuery } = useSqlQuery(); const handleExecuteQuery = async () => { const sql = "SELECT * FROM Orders LIMIT 10"; await executeQuery(sql); }; return ( <div> <button onClick={handleExecuteQuery}>Execute Query</button> <p>Query history: {state.queryHistory.length}</p> </div> );}import React from 'react';import { CubeKitProvider, QueryBuilder, QuerySidebar, ChartVisualization, QueryResultTable, useCube, useQuery} from '@cubekit/react';function App() { return ( <CubeKitProvider config={{ cubeApiUrl: 'http://localhost:4000/cubejs-api/v1' }}> <div className="flex h-screen"> <QuerySidebar className="w-64 border-r" /> <div className="flex-1 flex flex-col"> <QueryBuilder className="flex-1" /> </div> </div> </CubeKitProvider> );}export default App;import React from 'react';import { CubeKitProvider, DashboardBuilder, DashboardSidebar} from '@cubekit/react';function DashboardApp() { return ( <CubeKitProvider config={{ cubeApiUrl: 'http://localhost:4000/cubejs-api/v1' }}> <div className="flex h-screen"> <DashboardSidebar className="w-64 border-r" /> <DashboardBuilder className="flex-1" /> </div> </CubeKitProvider> );}export default DashboardApp;import React from 'react';import { CubeKitProvider, ConversationBuilder, ConversationSidebar} from '@cubekit/react';function AIAnalyticsApp() { return ( <CubeKitProvider config={{ cubeApiUrl: 'http://localhost:4000/cubejs-api/v1' }}> <div className="flex h-screen"> <ConversationSidebar className="w-64 border-r" /> <ConversationBuilder className="flex-1" aiApiUrl="https://your-ai-api.com/chat" enableVoiceInput={true} /> </div> </CubeKitProvider> );}export default AIAnalyticsApp;CubeKit React is built with TypeScript and provides comprehensive type definitions:
import { CubeQuery, QueryResult, CubeMeta, CubeDimension, CubeMeasure, FilterOperator, TimeGranularity} from '@cubekit/react';// All components and hooks are fully typedconst query: CubeQuery = { measures: ['Orders.count'], dimensions: ['Orders.status'], timeDimensions: [], filters: [{ member: 'Orders.status', operator: 'equals', values: ['completed'] }], segments: [], limit: 1000, order: { 'Orders.count': 'desc' }};Customize how CubeKit stores data (queries, conversations, dashboards):
import { StorageAdapter, BrowserStorageAdapter } from '@cubekit/react';// Use default browser storageconst defaultAdapter = new BrowserStorageAdapter();// Or implement custom storageclass CustomStorageAdapter implements StorageAdapter { async getItem(key: string): Promise<string | null> { // Your custom storage logic return localStorage.getItem(key); } async setItem(key: string, value: string): Promise<void> { // Your custom storage logic localStorage.setItem(key, value); } async removeItem(key: string): Promise<void> { localStorage.removeItem(key); }}// Use in provider<CubeKitProvider config={{ cubeApiUrl: 'your-api-url', storageAdapter: new CustomStorageAdapter() }}> <App /></CubeKitProvider>Build complex interfaces by composing smaller components:
function CustomQueryBuilder() { return ( <div className="flex"> <QuerySidebar className="w-64" /> <div className="flex-1"> <QueryBuilder className="h-full" /> </div> </div> );}Always handle loading and error states:
function SafeQueryBuilder() { const { isLoading, error } = useCube(); if (isLoading) return <div>Loading schema...</div>; if (error) return <div>Error: {error}</div>; return <QueryBuilder />;}Use React.memo for expensive components:
import React from 'react';const OptimizedChart = React.memo(ChartVisualization);Ensure components are accessible:
<QueryBuilder className="focus:outline-none focus:ring-2 focus:ring-blue-500" aria-label="Query Builder Interface"/>
